If one imagines that three-phase hospital power distribution systems as “arteries” then power limited circuits can be imagined as the “capillaries” that drive hundreds of end use clinical equipment and devices. The analogy captures the hierarchical, physiological structure of hospital electrical systems—much like the human circulatory system—where power flows from high-capacity trunks to precision, low-risk endpoints.

Three-Phase Systems: The Arteries and Veins

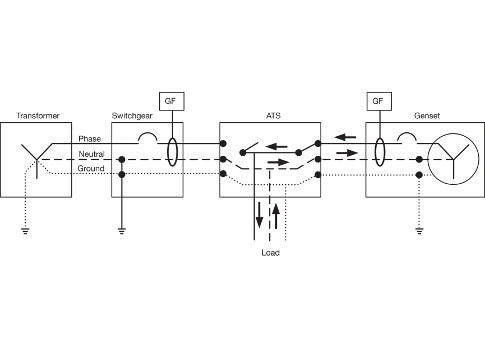

Three-phase hospital power distribution systems function as the arteries and veins: they are the robust, high-volume “vascular” network. Incoming utility power (or on-site generators) arrives as three-phase medium voltage, stepped down through transformers and switchgear into the Essential Electrical System (EES). This backbone—normal power, life-safety, critical, and equipment branches—delivers bulk kilowatts across the facility to major loads: HVAC, lighting, elevators, imaging suites, and operating-room receptacles. Like arteries, these feeders carry large currents over long distances with minimal loss; like veins, they return current safely while maintaining redundancy and selective coordination to keep the “body” (hospital) alive during outages.

Power-Limited Circuits: The Capillaries

Power-limited circuits (NEC Article 725/724 Class 2 and Class 3) are the capillaries. They are the countless, tiny, energy-restricted final branches that directly “perfuse” end-use clinical devices. These circuits are deliberately power-limited—typically ≤30 V and ≤100 VA—to prevent fire, shock, or interference in patient-care spaces. They supply nurse-call systems, bedside monitors, infusion-pump controls, alarm signaling, data links, and low-voltage sensors. Just as capillaries exchange oxygen and nutrients cell-by-cell without flooding tissue, power-limited circuits deliver only the precise, safe wattage needed by sensitive electronics while isolating them from the high-energy main distribution. Their thin insulation, separation rules, and inherent current-limiting transformers mirror the delicate walls of capillaries.

Articles Under CMP 3

• Article 300 — General Requirements for Wiring Methods and Materials
• Article 335 — Instrumentation Tray Cable (in some references for the 2029 cycle)
• Article 590 — Temporary Installations (being relocated/renumbered in the 2026 cycle, e.g., potentially to Article 140 in Chapter 1, as temporary wiring is not treated as a special occupancy)
• Article 720 — Limited-Energy System Installations (new/general article covering wiring methods for limited-energy systems)
• Article 721 — Limited-Energy Power Sources
• Article 722 — Limited-Energy Cable (covers cables for power-limited, fault-managed, etc.)
• Article 723 — Raceways, Cable Routing Assemblies, and Cable Trays for Limited-Energy Systems (newly created in the 2026 cycle)
• Article 725 — Class 2 and Class 3 Remote-Control, Signaling, and Power-Limited Circuits
• Article 726 — Class 4 Fault-Managed Power Circuits and Equipment
• Article 727 — Instrumentation Tray Cable
• Article 728 — Fire-Resistive Cable Systems
• Article 760 — Fire Alarm Systems (power-limited and non-power-limited portions)

CMP 3 also handles associated content in: Chapter 9 — Tables, including Tables 11(A) & (B) and Tables 12(A) & (B) (related to conductor properties and other supporting tables for the above topics).

• Notes on Changes and Scope
  CMP 3 focuses on general wiring rules, cable types, raceways/trays for low-energy applications, and signaling/communications-related wiring (distinct from higher-power utilization equipment or special occupancies handled by other panels).
• In the 2026 NEC cycle, there has been significant reorganization of Chapter 7 to consolidate limited-energy systems under articles like 720–726 (and related ones), moving away from older structures. This includes new articles for raceways/cable trays specific to limited-energy systems and adjustments to scopes for clarity.
• Article 206 (Non-Power-Limited Remote-Control and Signaling Circuits) appears in some 2026-related references as newly designated or relocated material handled in this area.
  Temporary installations (Article 590) are transitioning out of “special” categories in restructuring efforts.
